Absen KLCOB Lite 1.2mm COB Indoor Display Panel

The Absen KLCOB Lite 1.2mm panel brings Absen’s flip-chip COB platform—engineered by one of the world’s most established LED display manufacturers—to its most accessible price point. Each cabinet delivers a native 480×270 matrix at a fine 1.25mm pixel pitch, tuned for real-world viewing distances where the room, not the front row, sets the requirement.

Crafted from high-precision die-cast aluminum, the KLCOB Lite cabinet is ultra-slim, rigid, and machined for flawless mechanical fit. Measuring just 39.5mm (1.56″) thick and sized at 600mm × 337.5mm (23.62″ × 13.29″), it weighs only 4 kg (8.81 lbs)—a structural load of just 19.8 kg/m²—light enough for standard commercial wall mounting with minimal depth and clean integration.

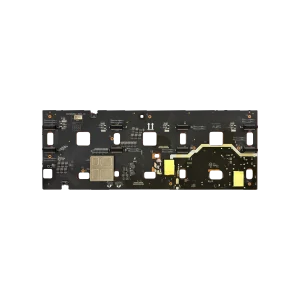

Each cabinet is built from eight 150 × 168.75mm COB modules in a 4 × 2 arrangement, engineered for seamless alignment, consistent visual uniformity, and full interchangeability. The fully encapsulated COB face seals every LED behind a protective surface—a decisive durability advantage in lobbies, conference rooms, and high-traffic spaces. Maintenance is streamlined with full front access, without rear clearance or downtime.

Designed for dependable performance in professional indoor environments, the panel is driven by Flip-Chip COB LEDs processed at up to 13-bit grayscale with a 3840Hz refresh rate and a 1/60 scan, delivering approximately 600 cd/㎡ of brightness, a 15,000:1 contrast ratio, and a wide 160° (H) × 160° (V) viewing angle. Power consumption tops out at just 71W per panel—roughly 242 BTU of heat output—running on AC 100–240V with locking powerCON power connections and RJ45 CAT5e data distribution in a fully fanless, silent design.

The panel is compatible with precision wall-mounting structures, offering a low-profile, rigid, and alignment-true installation footprint with an IP40-rated front face and IP21-rated rear. Additionally, the KLCOB Lite series is CCC, FCC, and CE certified, supporting compliance with established electrical safety and electromagnetic compatibility standards in professional environments.

Tuned for real-world viewing distances, the 1.25mm pitch achieves a pixel density of 640,000 pixels per square meter—from approximately 4 feet back, the image is visually indistinguishable from far finer pitches at a substantially lower cost per square foot. It’s the practical choice for conference rooms, lobbies, training spaces, houses of worship, and retail environments.

What truly sets the KLCOB Lite series apart is its combination of Flip-Chip COB architecture, a fully sealed display surface, and front-serviceable module construction. This advanced design enhances signal stability, thermal behavior, and long-term reliability, resulting in exceptionally stable visuals, extended component lifespan, and reduced risk of pixel damage during service.
