LUMINA Nanolite Series
LUMINA Nanolite is SV Solutions' premium indoor LED panel series, available in 1.5 mm, 2.6 mm and 3.9 mm pixel pitch for broadcast, touring and fixed-install LED walls. Featuring 4-layer 2 mm PCBs, 7680 Hz refresh rate and black SMD LEDs, these panels deliver precise color reproduction, high brightness (800 NITS) and seamless modular integration.
LUMINA Nanolite Core Features
Six engineering choices that separate LUMINA Nanolite LED panels from generic rental-style options — every one of them visible on camera.
Certifications
Meets rigorous safety and quality standards under North-American electrical regulations. Compliant with EMI rules to prevent signal interference.
4-layer / 2 mm PCB
Reserved for high-end electronics. Delivers the best signal integrity, power efficiency, thermal management, durability and visual effect.
Ultra-slim rental-style panel
The lightest and most space-saving rental-style panel in the Lumina line. Perfect for touring crews and fast install/de-install setups.
Dual-face mounting system
Mount from front or rear with the same hardware. Same panel works back-to-back for double-sided displays in retail or stage settings.
Built for brilliant LED visuals
Three before/after comparisons that show the difference Nanolite makes — on camera, off-camera, and at any viewing distance.
Black SMD2020 LEDs
Deep blacks and crisp contrast — even in low-light scenes. Ideal for venues where ambient light cannot be fully controlled.
7680 Hz refresh rate
Flicker-free content for video recording and slow motion. Perfect for professional cameras, broadcast, and mobile capture.

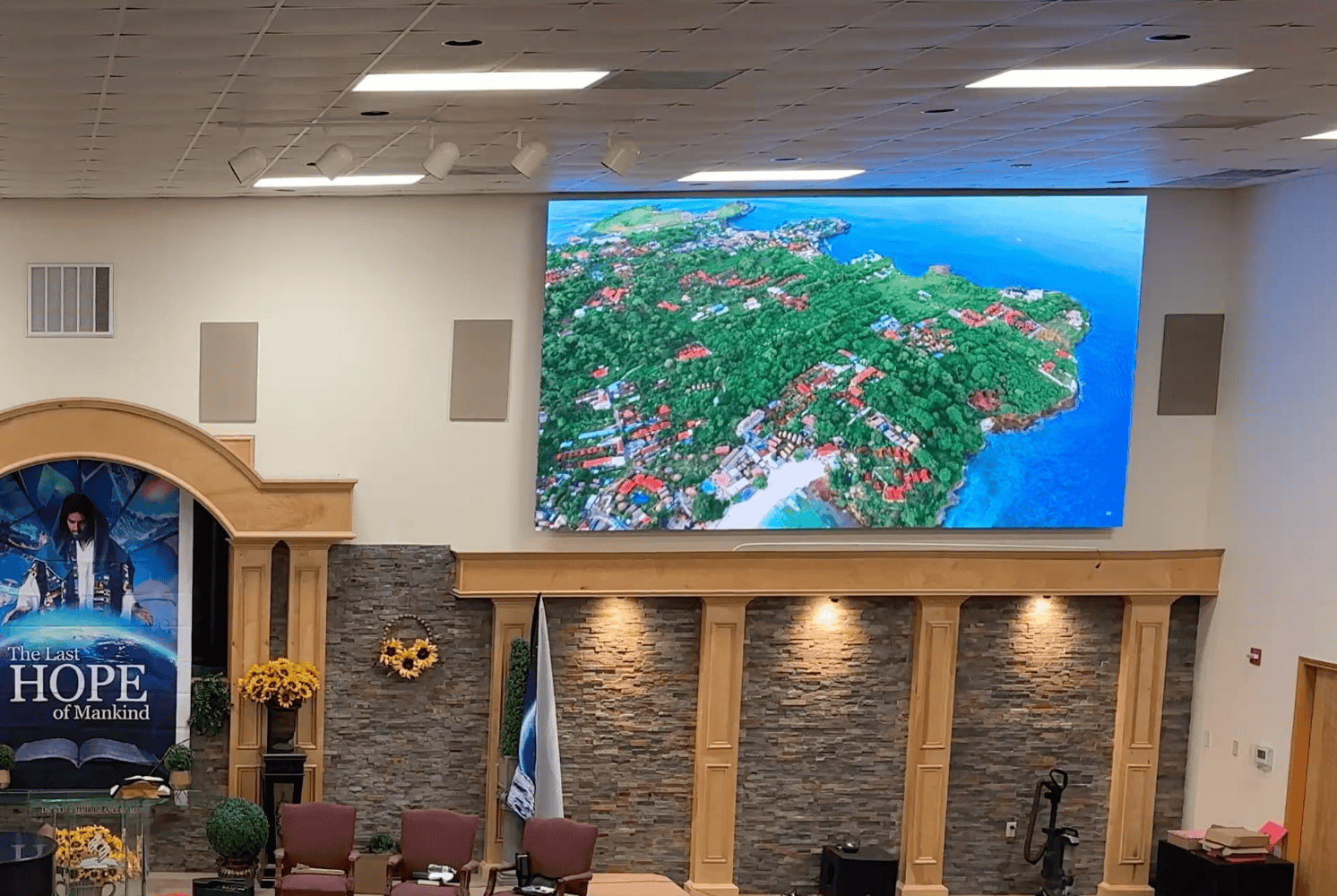

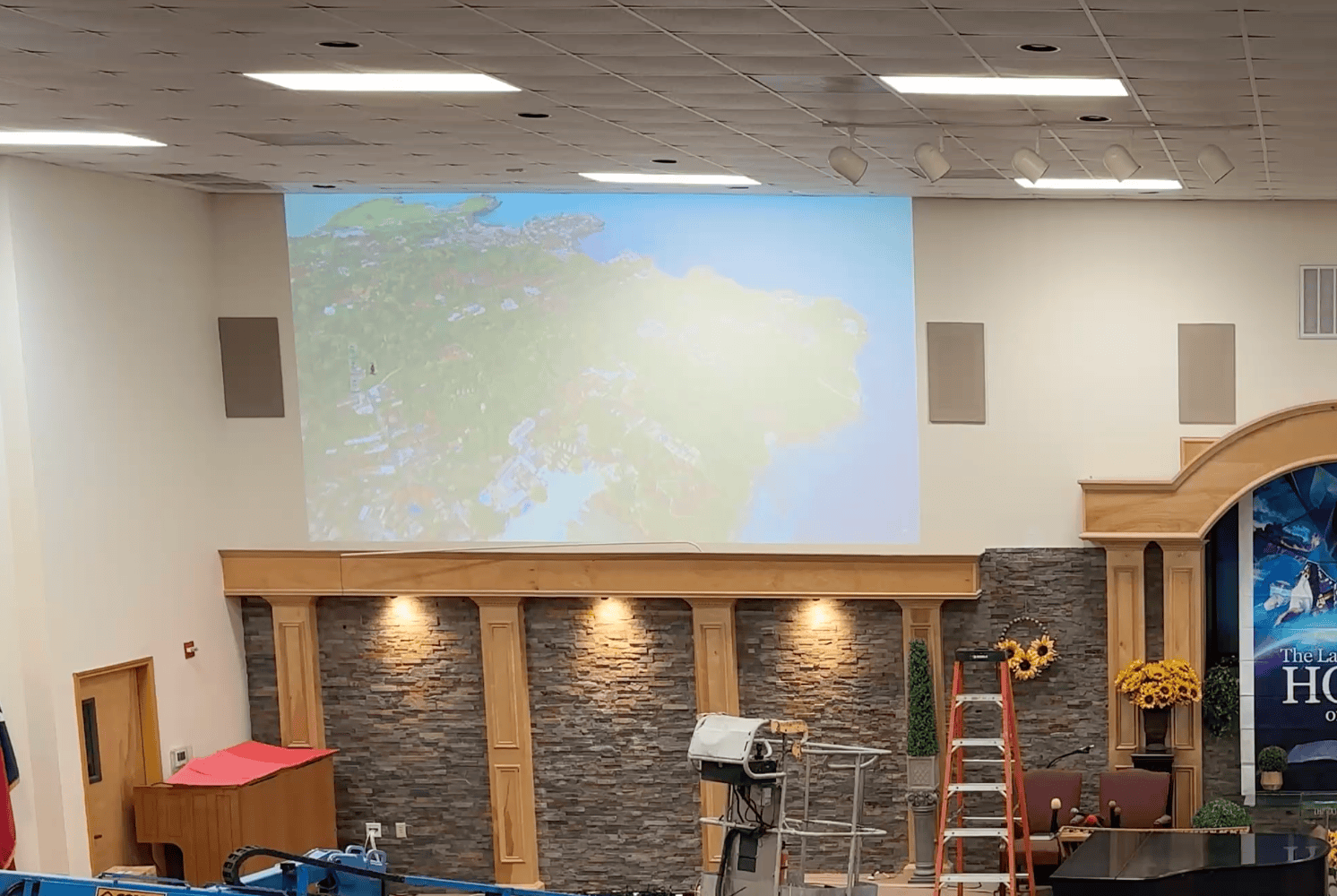

800 NITS brightness
High visibility under stage lights or in bright indoor environments. Keeps content readable and impactful from any angle.
Built for every LED video wall venue
Nanolite scales from intimate restaurant stages to outdoor activation walls without changing hardware.
Restaurants
Churches
Gyms
Schools
Shops
Outdoor
Flagship LUMINA Nanolite LED Panels
Three pixel pitches engineered for broadcast, touring and fixed-install LED walls. The 1.5 mm flagship steps up to a 4-layer PCB and Kinglight LEDs.
NanoLite 1.5
- Pixel Pitch
- 1.53 mm
- PCB
- 4-layer / 2 mm
- Refresh Rate
- 7680 Hz
- Brightness
- 800 NITS
- LED Type
- Kinglight SMD1212 (Black)
- Module Connection
- Hard connection
- Panel Size
- 500 × 500 mm (19.68″ × 19.68″)
- Weight
- 5.31 kg / 11.7 lb
NanoLite 2.6
- Pixel Pitch
- 2.604 mm
- PCB
- 2-layer / 2 mm
- Refresh Rate
- 7680 Hz
- Brightness
- 800 NITS
- LED Type
- Sinyopto SMD1515 (Black)
- Module Connection
- Hard connection
- Panel Size
- 500 × 500 mm (19.68″ × 19.68″)
- Weight
- 5.31 kg / 11.7 lb
NanoLite 3.9
- Pixel Pitch
- 3.91 mm
- PCB
- 2-layer / 2 mm
- Refresh Rate
- 7680 Hz
- Brightness
- 800 NITS
- LED Type
- SMD2020 (Black)
- Module Connection
- Hard connection
- Panel Size
- 500 × 500 mm (19.68″ × 19.68″)
- Weight
- 5.31 kg / 11.7 lb
Compare the 3 LUMINA Nanolite LED panels
Pick the right pitch for your viewing distance and use case — close-viewing broadcast, mid-distance corporate stages, or large rental walls.
| Spec | NanoLite 1.5 | NanoLite 2.6 | NanoLite 3.9 |
|---|---|---|---|
| Pixel pitch | 1.53 mm | 2.604 mm | 3.91 mm |
| PCB layers | 4-layer / 2 mm | 2-layer / 2 mm | 2-layer / 2 mm |
| Refresh rate | 7680 Hz | 7680 Hz | 7680 Hz |
| Brightness | 800 NITS | 800 NITS | 800 NITS |
| LED type | Kinglight SMD1212 (Black) | Sinyopto SMD1515 (Black) | SMD2020 (Black) |
| Panel size | 500 × 500 mm (19.68″ × 19.68″) | 500 × 500 mm (19.68″ × 19.68″) | 500 × 500 mm (19.68″ × 19.68″) |
| Weight | 5.31 kg / 11.7 lb | 5.31 kg / 11.7 lb | 5.31 kg / 11.7 lb |
| Best fit for | Broadcast, virtual production, premium close-viewing installs | Concerts, corporate stages, mid-distance viewing | Touring, events, large rental walls |
| Product page | View 1.5 → | View 2.6 → | View 3.9 → |
Pre-built LUMINA Nanolite LED wall bundles
Skip the configuration headache — every bundle ships with the panels, controller, cables and mounting hardware you need to go live on day one.
Compact
116″ Nanolite 1.5 mm
W8.2′ × H5′ (2.5 m × 1.5 m) — ideal for restaurants, small stages and conference rooms.
View bundle →
Mid-size
220″ Nanolite 1.5 mm
W16.4′ × H8.2′ (5.0 m × 2.5 m) — perfect for medium churches, corporate auditoriums and live events.
View bundle →
Large
360″ Nanolite 2.6 mm
W26.2′ × H14.7′ (8.0 m × 4.5 m) — main-stage scale for large churches, concerts and convention halls.
View bundle →LUMINA Nanolite FAQ
The questions we get asked most often about LUMINA Nanolite LED panels — pixel pitch, viewing distance, controllers, certifications and more.
What's the difference between NanoLite 1.5, 2.6 and 3.9?
Pixel pitch is the main difference. The 1.5 mm is suited to close-viewing applications like broadcast studios and virtual production. The 2.6 mm fits mid-distance use like concerts and corporate stages. The 3.9 mm is built for large-distance use like touring and rental walls. All three share the same panel size (500 × 500 mm), refresh rate (7680 Hz), brightness (800 NITS) and weight (5.31 kg). The 1.5 mm flagship steps up to a 4-layer PCB and Kinglight SMD1212 LEDs; the 2.6 mm and 3.9 mm use a 2-layer PCB with Sinyopto SMD1515 and SMD2020 respectively.
Are LUMINA Nanolite panels indoor or outdoor?
LUMINA Nanolite is designed for indoor use only. For weatherproof outdoor LED walls, see the LUMINA 960 Outdoor series.
Are LUMINA Nanolite panels certified for North America?
Yes. LUMINA Nanolite meets North-American electrical safety standards (ETL listed) and complies with FCC EMI regulations to prevent signal interference with other equipment on site.
What receiving card works with LUMINA Nanolite?
The recommended receiving card is the Novastar A8s-N Plus, sold as part of our Armor Series Receiving Card option. For controller and processor compatibility with your existing setup, please contact SV Solutions.
How do the OptiAlign 125 × 500 mm modules work?
Each Nanolite panel splits into smaller 125 × 500 mm OptiAlign modules. If a single module needs service, it can be swapped in any location without removing the surrounding panels — reducing service time and keeping the display uniform.
What's included in a pre-built LUMINA Nanolite bundle?
Each bundle ships complete with the LED panels in the selected pitch, Novastar receiving cards, a Novastar controller, HDMI input, the required data and power cables, and a flight case for transport. Component counts scale with bundle size — see each bundle listing for the exact component list.
Can I rent LUMINA Nanolite panels?
The Nanolite uses an ultra-slim rental-style form factor that suits both rental and fixed-install use cases. For rental availability, pricing and lead times, contact SV Solutions directly.
Comparing your options? See the rest of the LUMINA family
LUMINA Nanolite is part of SV Solutions' broader LUMINA LED panel family. If you need a different form factor or use case, compare with these:
